Meisterschaft Motorsport Engineering · BMW M3 E90 / E92 / E93 (2008–2013)
Camber and toe, locked where you set them. Lap after lap.
$1,260
$1,400
Save 10% as a package
Arm body
Billet 7050-T7452
Spacers & studs
17-4PH H900 stainless
Rod ends
M14 PTFE-lined spherical
Ships
Assembled & pre-set
What the package does
“
★★★★★
I installed the rear toe and camber arms on my E92 and the difference was immediate. Before I felt the rear wanting to step out especially through high speed corners but now it feels way predictable and connected.
Ro, E92 owner
01
Rear camber and rear toe are set at two different links.
02
On a lowered E9x M3, both move once the factory rubber deflects under load.
03
The camber arms hold the camber you set on the rack.
04
The toe arms stop the rear from steering itself under load and braking.
05
Together they remove compliance from the rear axle.
The arms, one by one

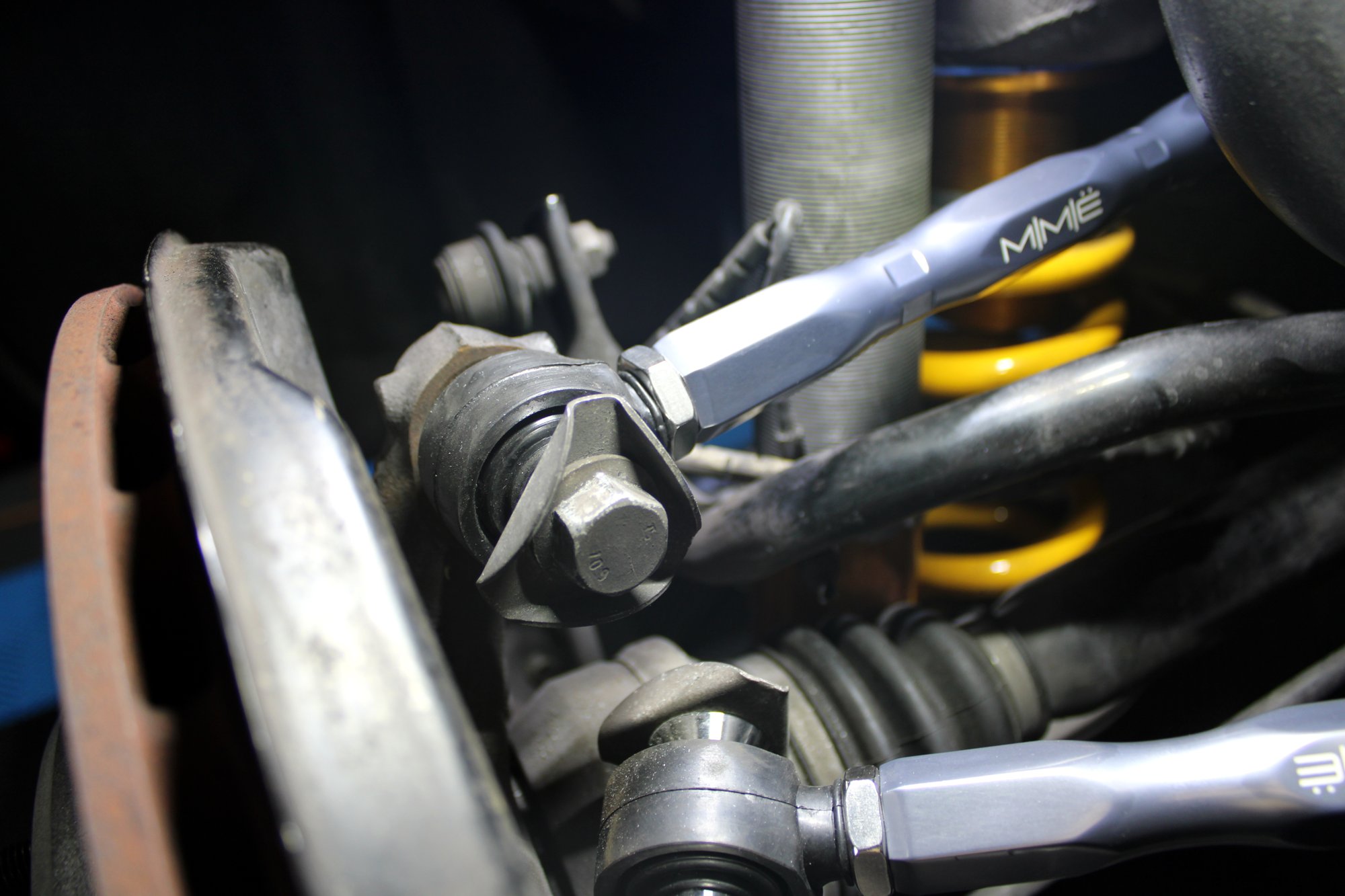

3A · Kit 01
Set rear camber and keep it there, lap after lap.
Kit
Complete set, both upper links
Lengths
2× 242 mm + 2× 275 mm
Joints
Spherical-bearing, fully adjustable
$850
3B · Kit 02
Replace the compliant factory toe links. Rear toe holds under load and braking instead of wandering.
Kit
Pair, left + right
Adjust
Fully adjustable
Option
Toe lockout plates +$100
Toe lockout plates · +$100. 304 stainless plates clamp the factory eccentric so toe cannot walk, even after curbing or contact. Grade 10.9 Geomet zinc-flake hardware.
$550
Build your package
Engineering
A suspension arm fails three ways. The body cracks, the spacers gall and pound out, or the bearing wears. The materials were chosen to beat all three. Both kits share this build.
Arm body
~1.7×
stronger at yield than 6061 / 6082-T6
~69 ksi yield. Aerospace 7000-series alloy.
Misalignment spacers & studs
~4×
harder than aluminum spacers
~170 ksi, 40–44 HRC. No brinelling, no galling.
Spherical bearings
0
deflection. Rebuildable, not throwaway.
Zinc-plated chromoly body, hard-chrome ball.
Validation
Developed on our A90 Supra through South Florida heat, humidity, and rain, plus track use at Sebring on slicks. Every MME arm uses the same rod-end architecture and three materials. That durability carries to the E9x arms.
40,000
Development miles
~2 yr
Durability program
0
Test failures
Exposed
Rod ends run with no boots
Finish
Same structure. Same warranty. Different surface.
Recommended · Included
$0
Hard ceramic oxide layer. Resists galling and wrench marks.
For: drivers who adjust often.
Option
−$80 per kit
Brighter finish that shows the machining. Marks more easily.
For: set-once builds.
Specifications
| Spec | Rear camber arms | Rear toe arms |
|---|---|---|
| Kit contents | 2× 242 mm + 2× 275 mm | 2× toe arms, L + R |
| Arm type | Rear upper camber, fully adjustable | Rear toe, fully adjustable |
| Arm body | Billet AL-7050-T7452 | |
| Spacers / studs | 17-4PH stainless H900 | |
| Rod ends | M14 PTFE-lined 3-piece spherical | |
| Jam-nut flats | 22 mm hex, also takes an 18 mm wrench | |
| Options | — | Toe lockout plates +$100 |
18 mm
Only own one 22 mm wrench? A single 18 mm wrench also locks the setting.
Warranty
Intended use
Off-road, competition, track, and closed-course use only. Not street legal. Public-road use voids the warranty on affected parts.
Structural
Limited Lifetime
Arm bodies and 17-4PH spacers/studs. Original owner.
Bearings & wear items
2 years
With professional install and alignment.
Crash replacement
15% off
Replacement arms for on-track incidents.
FAQ
Most kits ship in about a week. Built-to-order kits ship within 30 days max.
Yes. Alignment and install inspection by a qualified shop is required, and is a warranty condition.
Off-road and competition use only. Not street legal.
Yes, at full price. Buy both as a package for 10% off.
Tell us how you drive your E9x M3 and we’ll recommend the right geometry.
