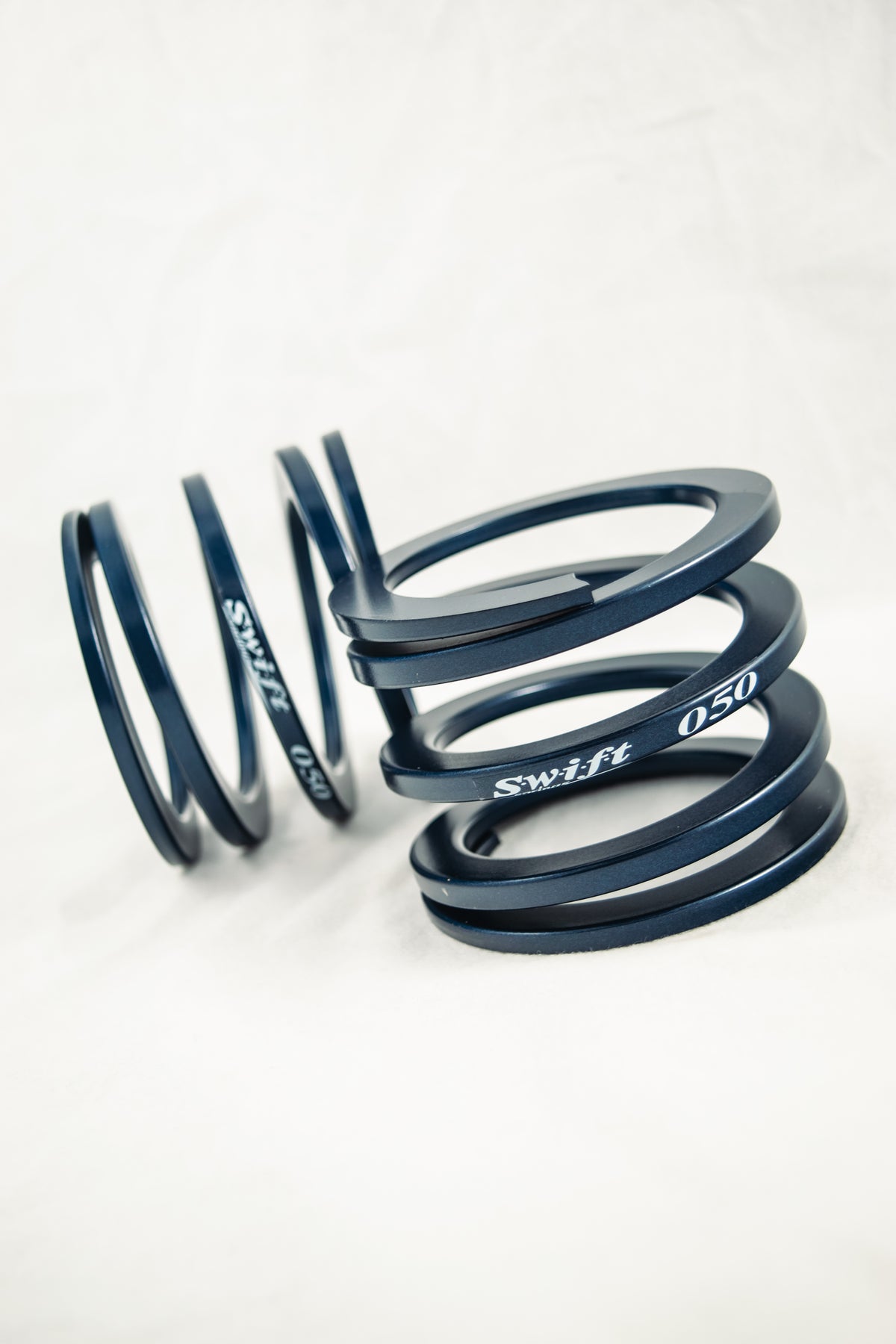

Swift Springs Assist Springs

Swift Assist Springs are designed to be fully compressed at static height. Every assist spring compresses to the exact same height, allowing drivers to change assist springs without resetting the perch on the coilovers so ride height isn’t affected.

Heavier rates of assist springs over helper springs are used to fine tune the rebound travel of the shock. These springs can also help prevent a loss of traction due to inside wheel lift during hard cornering.

Available Configurations – Sold in Pairs (includes Stack Spring Adapter)

60mm (2.25″) ID Assist Springs

• A60-072-040 – 4.0 kgf/mm (224 lbs/in) | Length: 72mm (2.8″) | Stroke: 42mm (1.7″) – $202.00/pair
• A60-072-050 – 5.0 kgf/mm (280 lbs/in) | Length: 72mm (2.8″) | Stroke: 42mm (1.7″) – $202.00/pair
• A60-072-060 – 6.0 kgf/mm (336 lbs/in) | Length: 72mm (2.8″) | Stroke: 42mm (1.7″) – $202.00/pair

65mm (2.56″) ID Assist Springs

• A65-068-040 – 4.0 kgf/mm (224 lbs/in) | Length: 68mm (2.7″) | Stroke: 41mm (1.6″) – $202.00/pair
• A65-068-050 – 5.0 kgf/mm (280 lbs/in) | Length: 68mm (2.7″) | Stroke: 41mm (1.6″) – $202.00/pair
• A65-068-060 – 6.0 kgf/mm (336 lbs/in) | Length: 68mm (2.7″) | Stroke: 41mm (1.6″) – $202.00/pair

Please specify your desired part number in the order notes.

Made with Swift proprietary HS5.TW material.
